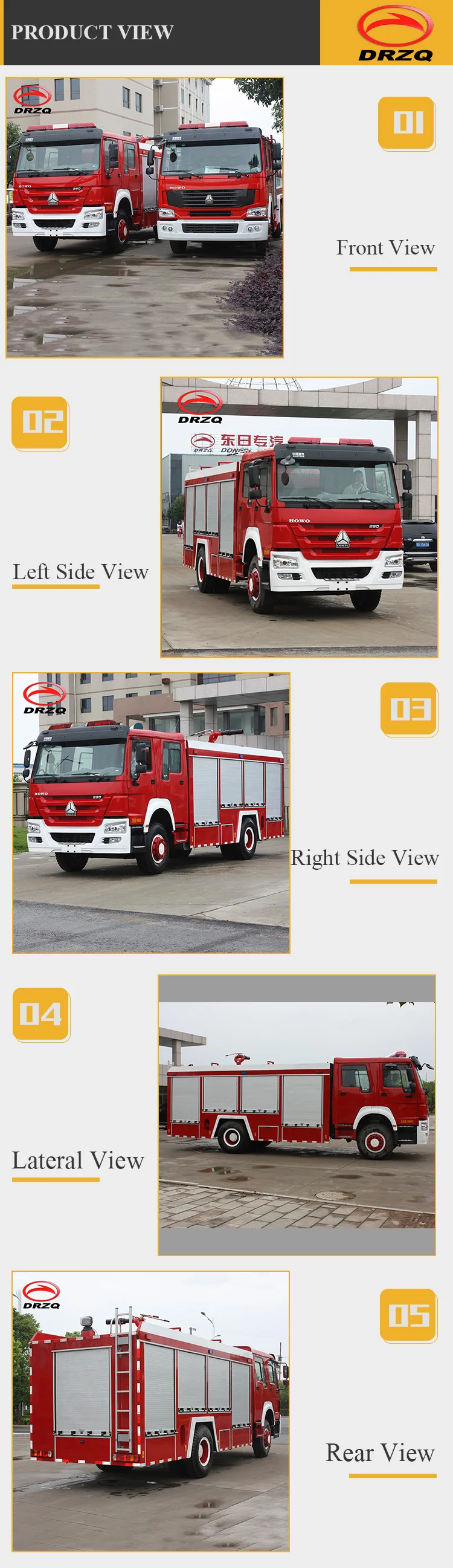

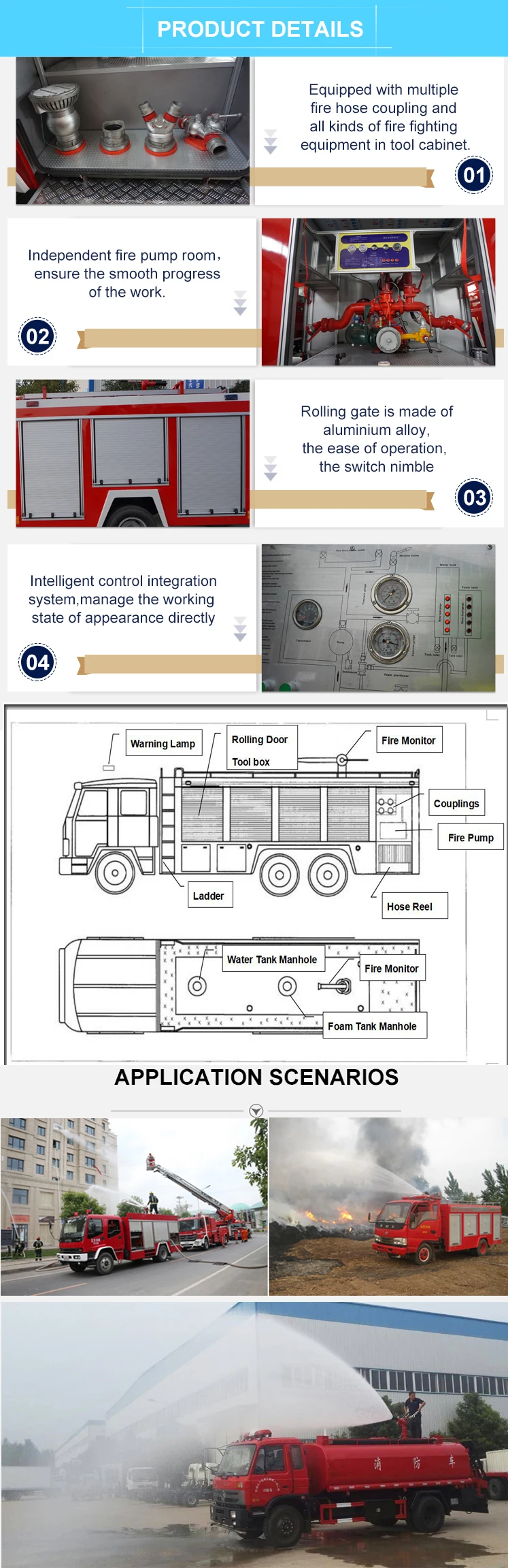

Electric Fire Truck Fire Engine truck
| Specification of DF water/foam Fire Fighting Truck | |||
| Item | Specification | Item | Specification |
| General | |||
| Truck name | water/foam Fire Fighting Truck | Overall Dimension (mm) | 9750×2490×3150 |
| Truck Model | EQ1208KB3GJ | Wheel base (mm) | 5100+1300 |
Traction system | 6 x 4 | Gross Weight (kg) | 20490 |
| Cab Capacity | 1+1+3 | Curb Weight (kg) | 8795 |
| Transmission | mannual | Front Wheel Tread (mm) | 1245 |
| Chassis Brand | DF | Rear Wheel Tread (mm) | 2855 |
| Tyre Model | 10.00-20 | Approach Angle (°) | 32 |
| Quantity of Tyre | 10 | Departure Angle (°) | 12 |
| Quantity of Axles | 3 | Front Overhang (mm) | 1300 |
| Max Speed (km/h) | 85 | Rear Overhang (mm) | 1950 |
| Chassis | |||
| Chassis Model | EQ1208KB3GJ | Leaf Spring | 8/13; 8/12 |
| Engine (Motor) | |||
| Brand | DF | Type | Diesel |
| Model | B210 33 | Displacement (ml) | 5900 |
| Power | 155kw/210hp | Emission standard | Euro 3/5 |
| Equipments | |||
| Tanker Capacity (Ton/L) | 16 / 16000 | Nozzle Pressure (MPa) | 1.0 |
| Tank Material | carbon/stainless steel | Water Flow Speed (L/s) | 60 |
| High/Middle/Low Pressure Pump | CB10/60 | Covering Range (m) | water≥60m; foam≥55m |
Remarks: | |||
NOTE: 1. Any part can be customized depending on customers' demand. 2. 12 months whole vehicle warranty 3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance. |
